NiCr is cost effective and versatile.
| Part No | ØA Hot Zone (mm) | ØB Heater O.D. (mm) | C Heater Thickness (mm) | O.D. cooled shield OPTION (mm) |
|---|---|---|---|---|
| HCM6-NCR-02 | 52 | 66 | 25 | 92 |
| HCM6-NCR-03 | 78 | 92 | 25 | 118 |
| HCM6-NCR-04 | 105 | 119 | 25 | 145 |
| HCM6-NCR-05 | 129 | 143 | 25 | 169 |
| HCM6-NCR-06 | 156 | 170 | 25 | 196 |
| HCM6-NCR-07 | 179 | 193 | 25 | 219 |
| HCM6-NCR-08 | 205 | 219 | 25 | 245 |
Contact our technical sales team today if you need any assistance or a larger heater size. Additional options include, but are not limited to:

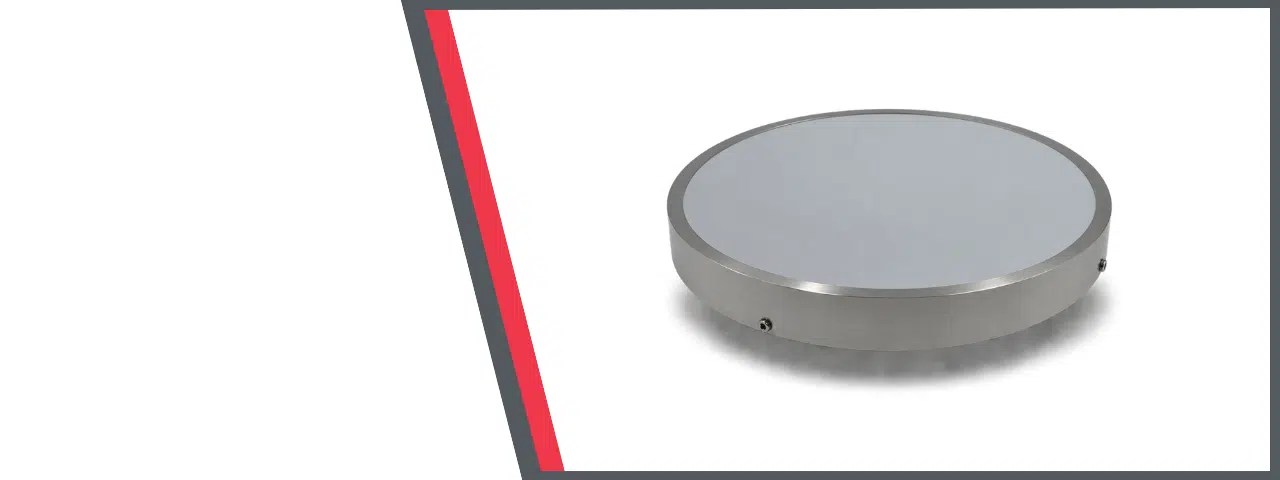

Nickel Chrome vacuum heaters are used for sample heating in high vacuum, inert atmosphere and O2 / air environments. They provide a cost effective and versatile heating option for a range of sample sizes and mounting requirements.
The heater has an 800°C ceramic top plate temperature and a 1000°C element temperature.
Standard sizes are available from Ø1” to Ø8”. The table includes hot zone sizes from 52mm to 205mm, depending on the part number.

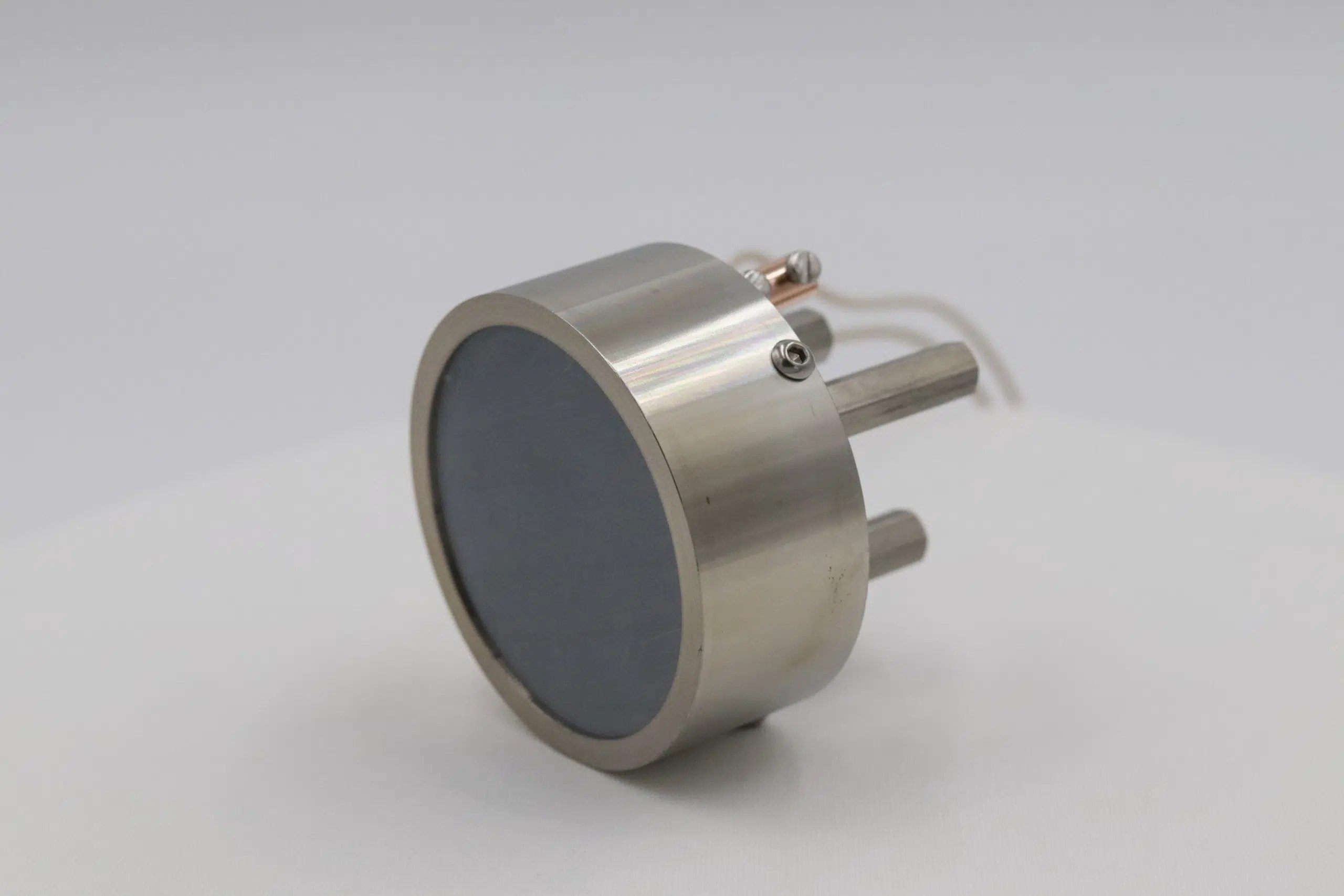

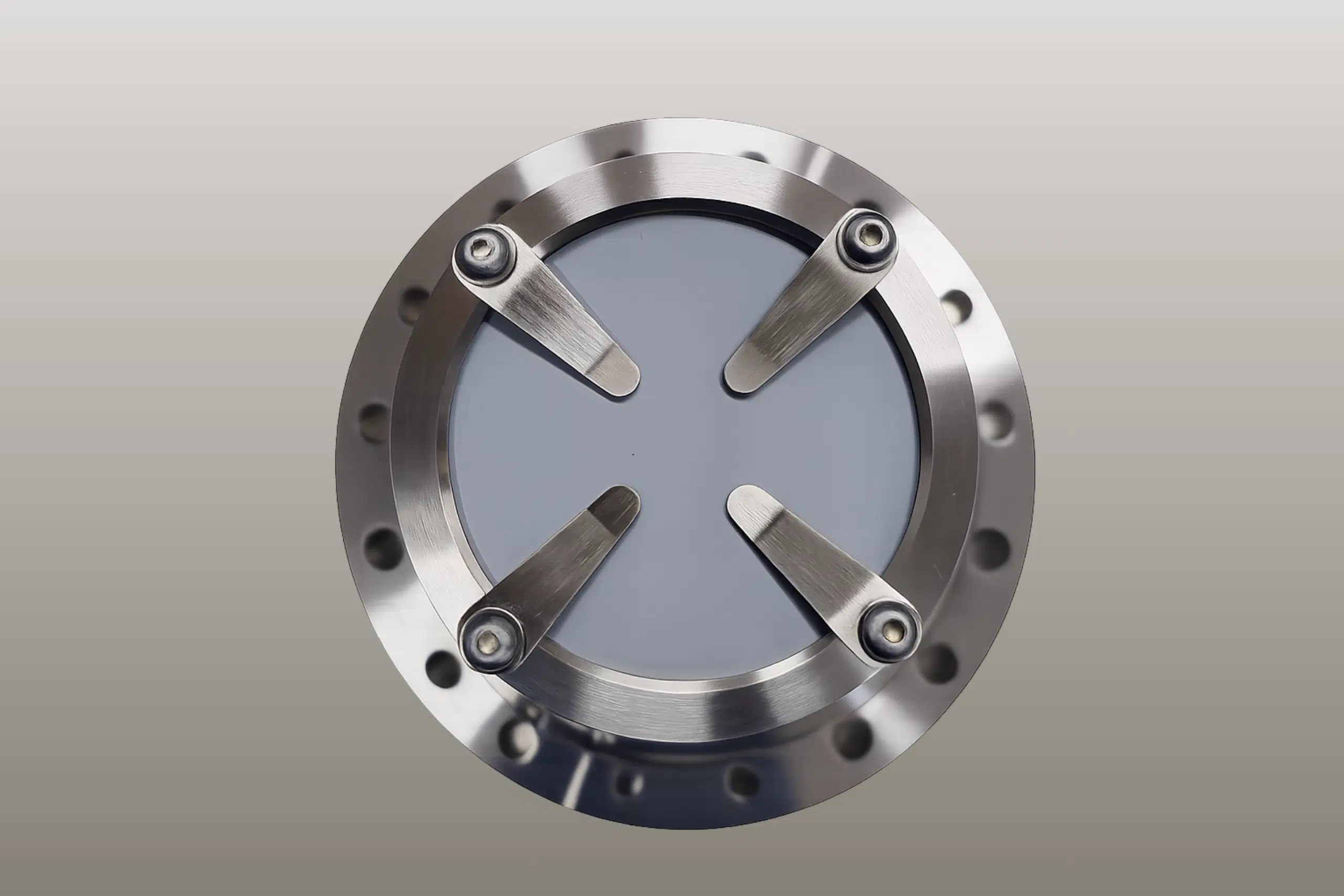

Yes. The heater can be mounted in any orientation. It is usually supplied with an M6 stud for mounting, but it can also be flange mounted or supplied as a free standing heater.

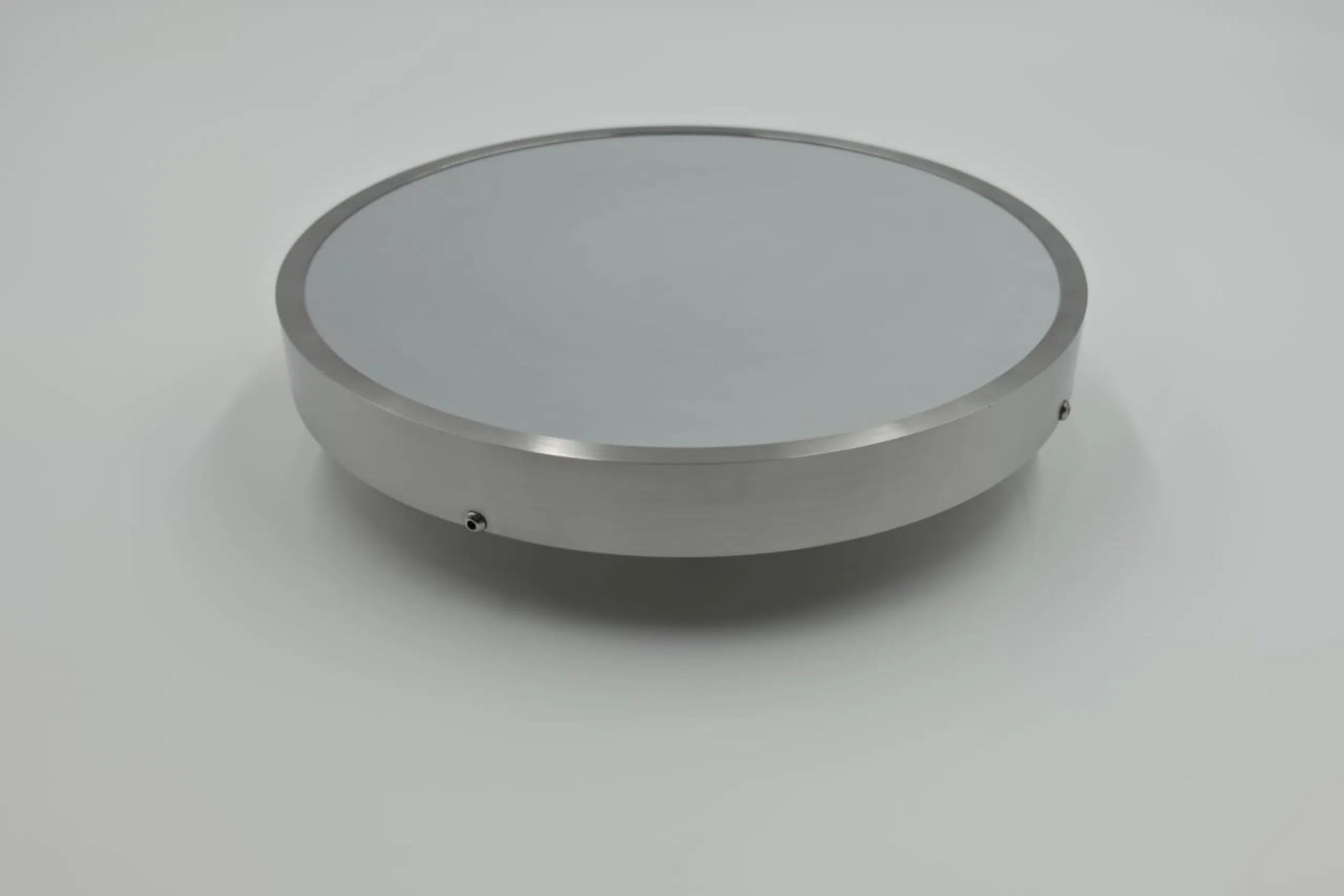

Yes. Samples can be placed directly onto the heater ceramic top plate.
Yes. Custom shapes and sizes are available on request, including special larger sizes and square or rectangular heater requirements. For wider sample heating options, see Thermic Edge sample heaters.
Optional extras include an additional outer heatshield, water cooling of the additional outer heatshield and / or base, flange mounting and power feedthroughs.
Yes. Heater stage mounting is available for rotation and sample transfer. Thermic Edge also supplies dedicated heater stages for sample manipulation and heating requirements.
Yes. Nickel Chrome vacuum heaters can be used as a direct replacement for halogen lamp heaters.
Useful details include the required heater size, hot zone size, operating environment, mounting method, whether water cooling is needed, sample holder requirements, sample bias requirements, thermocouple requirements and whether power supply, temperature controller or spare elements are needed. You can contact Thermic Edge through the contact page or email sales@thermic-edge.com.
NiCr is cost effective and versatile.
| Part No | ØA – Hot Zone (mm) | ØB – Heater O.D. (mm) | C – Heater Thickness (mm) | O.D. cooled shield OPTION (mm) |
| HCM6-NCR-02 | 52 | 66 | 25 | 92 |
| HCM6-NCR-03 | 78 | 92 | 25 | 118 |
| HCM6-NCR-04 | 105 | 119 | 25 | 145 |
| HCM6-NCR-05 | 129 | 143 | 25 | 169 |
| HCM6-NCR-06 | 156 | 170 | 25 | 196 |
| HCM6-NCR-07 | 179 | 193 | 25 | 219 |
| HCM6-NCR-08 | 205 | 219 | 25 | 245 |
Contact our technical sales team today if you need any assistance or a larger heater size. Additional Options include, but are not limited to:
