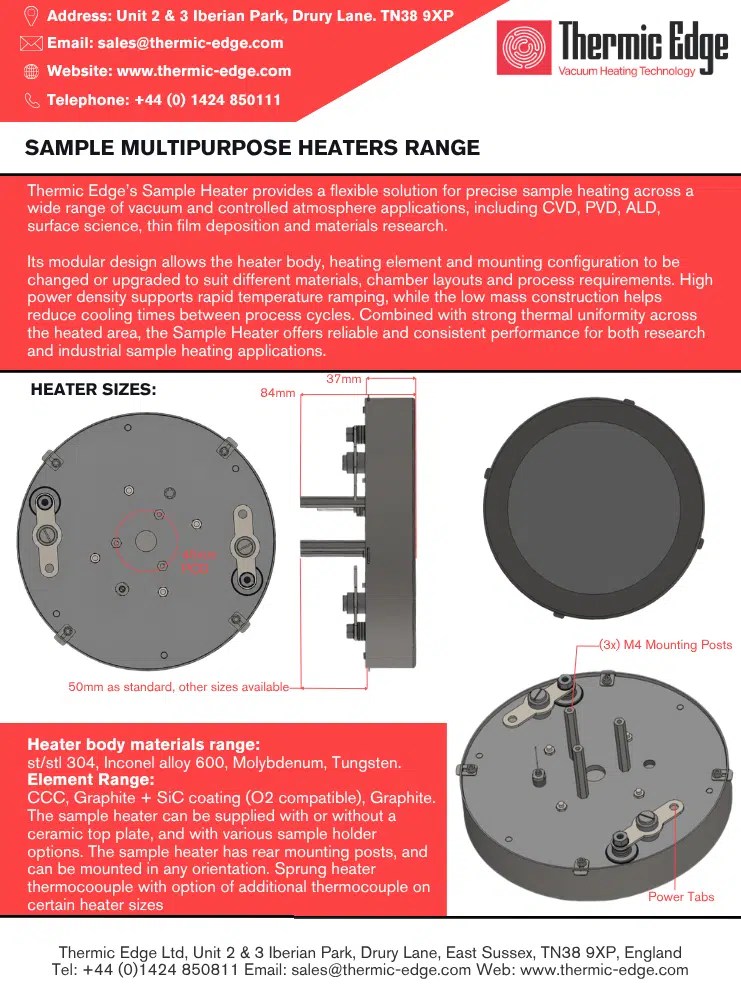

At Thermic Edge, we have developed a comprehensive range of cost-effective sample heaters, engineered specifically for laboratory and research environments. These heaters are designed to offer flexibility and precision, and can be easily customised to meet specific process requirements. Optional extras include integrated water cooling systems, sample rotation functionality for uniform exposure, and a variety of sample mounting configurations to accommodate different setups.
Each heater delivers high power density, which enables very fast ramp-up times for thermal processing. The low-mass body design contributes to reduced cool-down durations, improving operational efficiency. The system also ensures a high level of thermal uniformity across the entire hot zone, providing consistent and reliable heating conditions during each use.
Our sample heaters are available in a selection of body and element material combinations to support a broad spectrum of temperatures and vacuum conditions. These materials are chosen to suit the specific needs of different applications. All standard models are available in hot zone sizes ranging from two-inch (2″) to six-inch (6″) diameters, ensuring compatibility with a wide range of sample types and experimental setups.
| Part No. | Hot zone Ø | O.D.(approx.) | Ceramic Top Plate | TC type |
|---|---|---|---|---|
| VH-2-1000-CCC-HV | 2″ | 100 mm | ABN2000 | K |
| VH-3-1000-CCC-HV | 3″ | 125 mm | ABN2000 | K |
| VH-4-1000-CCC-HV | 4″ | 160 mm | ABN2000 | K |
| VH-6-1000-CCC-HV | 6″ | 190 mm | ABN2000 | K |
| Part No. | Hot zone Ø | O.D.(approx.) | Ceramic Top Plate | TC type |
|---|---|---|---|---|
| VH-2-1000-GS-O2 | 2″ | 100 mm | ABN2000 | K |
| VH-3-1000-GS-O2 | 3″ | 125 mm | ABN2000 | K |
| VH-4-1000-GS-O2 | 4″ | 160 mm | ABN2000 | K |
| VH-6-1000-GS-O2 | 6″ | 190 mm | ABN2000 | K |
| Part No. | Hot zone Ø | O.D.(approx.) | Ceramic Top Plate | TC type |
|---|---|---|---|---|
| VH-2-1600-CCC-HV | 2″ | 100 mm | ABN2000 | C |
| VH-3-1600-CCC-HV | 3″ | 125 mm | ABN2000 | C |
| VH-4-1600-CCC-HV | 4″ | 160 mm | ABN2000 | C |
| VH-6-1600-CCC-HV | 6″ | 190 mm | ABN2000 | C |
Click for Nickel Chrome (NiCr). For smaller heaters, see our Button Heater page.
Contact our technical sales team today if you need any assistance or a larger heater size. Additional options include, but are not limited to:
These heaters can be supplied flange mounted or fitted to our heater stages. All heaters are supplied with power leads and internal thermocouples and can be provided with power supplies and controllers providing a complete turnkey solution to your sample heating requirements.
Thermic Edge sample heaters are engineered specifically for laboratory and research environments. They are designed to offer flexibility and precision, and can be customised to meet specific process requirements.
All standard models are available in hot zone sizes ranging from two-inch (2″) to six-inch (6″) diameters. The Features tab also lists standard hot zone sizes ranging from Ø2” (51 mm) up to Ø6” (152 mm).
The page lists 1000°C CCC element heaters, 1000°C Graphite + SiC₃ heaters, and 1600°C CCC element heaters. The listed model sizes include 2″, 3″, 4″, and 6″ hot zones.
The 1000°C CCC and 1600°C CCC element heaters are listed for use in high vacuum, N₂ or inert atmosphere. The 1000°C Graphite + SiC₃ heaters are listed for use in high vacuum, O₂, N₂, H₂, or air.
Yes. The page lists options including water cooling, sample holder clips, masks or retainers, flange or heater stage mounting, sample bias, a second thermocouple, power supply, temperature controller, and spare elements.
Yes. The Features tab states that these heaters can be supplied flange mounted or fitted to Thermic Edge heater stages. It also states that they are stage mountable where rotation, Z-shift and/or RF or DC bias are required.
Yes. The page states that all heaters are supplied with power leads and internal thermocouples, and can be provided with power supplies and controllers to provide a complete turnkey solution to sample heating requirements.
For related heater products, view the Nickel Chrome (NiCr) page. For smaller heaters, see the Button Heater page.
Useful details may include the required hot zone size, operating temperature, vacuum or atmosphere conditions, mounting requirements, sample holder requirements, water cooling requirements, sample bias requirements, thermocouple requirements, and whether a power supply or temperature controller is needed. You can contact Thermic Edge through the contact page or email sales@thermic-edge.com.
At Thermic Edge, we have developed a range of cost-effective sample heaters that can be easily customised with optional extras, such as water cooling, sample rotation and various sample mounting options.
The heater has high power density (enabling very fast ramp up times), with low mass body (reducing cool down times) and high thermal uniformity over the entire hot zone.
The sample heaters are manufactured using different body and element materials to suit a wide range of applications and temperatures, and are available as standard from two-inch to six-inch diameter.
These heaters can be supplied flange mounted or fitted to our heater stages. All heaters are supplied with power leads and internal thermocouples and can be provided with power supplies and controllers providing a complete turnkey solution to your sample heating requirements.
Sample plate rotates above static element. In this example, clips are used to secure the substrates
Thermic Edge supply plates with apertures to hold and provide masking to samples if required.
Heaters can be used with the element exposed, and some cases samples can be placed directly onto elements
Contact our technical sales team today if you need any assistance or a larger heater size. Additonal Options include, but are not limited to:
