Vacuum Furnaces Explained

Vacuum furnaces are used where heat treatment needs to be clean, controlled, and repeatable. By heating materials inside a vacuum or controlled atmosphere environment, they help reduce contamination, limit unwanted reactions, and support stable processing across research, laboratory, and industrial applications.

For universities, research centres, manufacturers, and specialist engineering teams, this level of control can make a significant difference. Processes such as vacuum sintering, annealing, brazing, degassing, tempering, hardening, soldering, quenching, metallisation, MIM, CIM, carbonisation, liquid silicon infiltration, and oxidation furnace processing all depend on careful management of temperature, pressure, atmosphere, and material behaviour.

Thermic Edge designs and manufactures a range of vacuum furnace solutions for demanding thermal applications, including graphite vacuum furnaces, benchtop furnaces, and ALD systems for advanced materials, semiconductor research, and thin film processing.

What Is a Vacuum Furnace?

A vacuum furnace is a thermal processing system that heats materials inside a sealed chamber where air and reactive gases are removed or carefully controlled. This creates a cleaner processing environment than many conventional furnaces, particularly where oxidation, scaling, moisture, or surface contamination may affect the final result.

The vacuum environment helps control how a material behaves during heating, soaking, cooling, and reaction stages. This is especially important when processing metals, ceramics, graphite, wafers, coatings, powders, specialist alloys, or research samples that require consistent and repeatable results.

In simple terms, a vacuum furnace gives engineers and researchers greater control over three important areas: temperature, atmosphere, and process repeatability.

How Does a Vacuum Furnace Work?

A vacuum furnace works by placing the sample, component, or material inside a sealed chamber. A vacuum pump system then removes air from the chamber before or during the heating cycle. Once the required pressure is reached, the furnace heats the material according to the selected process recipe.

Depending on the application, the furnace may operate under vacuum, inert gas, reactive gas, oxidising gas, or another controlled atmosphere. This allows the system to be matched to the material and to the required outcome.

For example, an annealing process may require clean and stable heating to relieve internal stress. A sintering process may need consistent high temperature conditions to help particles bond. A wafer process may need accurate thermal control across a flat sample surface. A brazing process may require clean heating so that filler material can flow into the joint area without unwanted surface reactions.

Why Vacuum Furnaces Are Used for Clean Heat Treatment

Heat treatment changes the physical or chemical behaviour of a material. In many applications, the result depends not only on the peak temperature, but also on the atmosphere surrounding the material during the heating cycle.

In an uncontrolled environment, oxygen, nitrogen, moisture, and other gases can react with the material surface. This may cause oxidation, discolouration, contamination, scaling, or changes to the surface finish. A vacuum furnace helps reduce these risks by creating a cleaner chamber environment.

This is why vacuum furnaces are commonly used for processes such as annealing, brazing, sintering, degassing, tempering, hardening, metallisation, carbonisation, MIM, CIM, liquid silicon infiltration, and controlled atmosphere heat treatment.

What Is an Oxidation Furnace?

An oxidation furnace is designed for thermal processes where oxygen is intentionally introduced and controlled as part of the process atmosphere. While many vacuum furnace processes aim to reduce oxygen exposure, oxidation furnace processing uses oxygen in a deliberate way to support oxide growth, surface modification, thin film development, semiconductor research, and advanced material processing.

This makes oxidation furnaces useful where the atmosphere must be managed with the same care as temperature. In these applications, oxygen is not simply present in the chamber. It becomes a controlled process variable that can influence the material surface, film quality, oxide formation, or reaction behaviour.

Thermic Edge oxidation furnace technology can support applications where O2 processing, controlled atmosphere heating, suitable hot zone materials, and repeatable gas control are required. This is particularly relevant for research teams and manufacturers working with wafers, oxide materials, thin films, and oxygen based thermal processes.

Graphite Vacuum Furnaces for High Temperature Applications

Thermic Edge graphite vacuum furnaces are designed for laboratory and research use, with graphite hot zones available in a range of sizes. These systems support high temperature processes where thermal stability, sample compatibility, and controlled processing are important.

The Thermic Edge graphite furnace range includes crucible furnace options and wafer heating options. Standard hot zone formats include medium, large, and extra large crucible sizes, along with flat wafer hot zones for 4 inch, 6 inch, and 8 inch sample sizes.

Graphite performs well in many vacuum furnace environments because it is suitable for high temperature use and offers strong thermal behaviour under vacuum and inert conditions. Thermic Edge also supplies graphite heating elements and related components for demanding thermal systems.

SiC Coated Graphite for Oxygen Environments

Graphite is widely used in vacuum furnace technology, but oxygen rich processes place different demands on furnace materials. At elevated temperatures, unprotected graphite is not suited to oxidising environments, which is why coating technology becomes important.

Thermic Edge uses SiC3 silicon carbide ceramic coating technology for applications where components require protection in demanding thermal and reactive environments. In oxidation furnace applications, silicon carbide coated graphite can help support furnace designs where oxygen is part of the process requirement.

This makes SiC coated graphite relevant for O2 processing, oxide materials, thin film research, semiconductor development, and controlled atmosphere furnace applications.

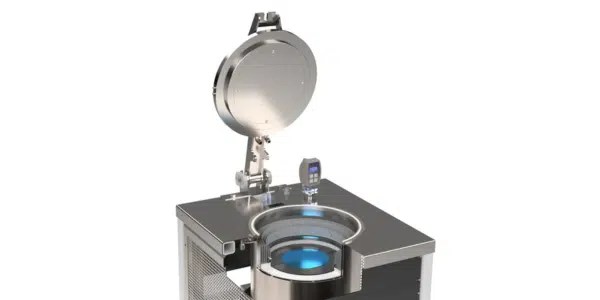

Benchtop Vacuum Furnaces for Smaller Laboratories

Not every laboratory needs a large floor standing furnace. In research, development, testing, and small sample processing, a compact system can often provide the right balance of performance and practicality.

Thermic Edge benchtop furnaces are designed for smaller laboratories carrying out sample testing, vacuum sintering, heat treatment, and controlled thermal processing.

The benchtop range is especially useful where space is limited, but process control still matters. Thermic Edge benchtop systems can include pump options, manual flow control, integrated control features, and data logging through a Eurotherm Nanodac controller.

For universities, research groups, and development teams, benchtop vacuum furnaces offer a practical route for early stage material testing, small batch trials, and controlled heat treatment work.

ALD, Annealing, and Oxide Processing

Vacuum furnace technology is closely connected to semiconductor research, thin film development, and advanced material processing. Thermic Edge supplies ALD systems that combine Atomic Layer Deposition with high temperature annealing in a single chamber platform.

Atomic Layer Deposition is used to deposit extremely thin and controlled material layers. It is valuable where uniform coverage, precise layer growth, and repeatable film properties are required.

The Thermic Edge ALD and annealing system is engineered for up to 8 inch wafer processing. It supports precise layer growth, enhanced crystallinity, defect reduction, gas controlled processing, sample lifting, and wafer gas cooling.

This makes the system relevant for research and production environments working with oxide, sulphide, and nitride processing, as well as materials such as MoS₂, MoO₃, WS₂, and WO₃.

Custom Vacuum Furnace Design and Hot Zone Options

Many vacuum furnace users do not need a standard system. Sample size, chamber geometry, target temperature, vacuum level, process gas requirements, and control needs can all vary from one application to another.

Thermic Edge supports custom vacuum furnace hot zones and vacuum chamber options, allowing systems to be adapted around specific customer requirements.

Custom options may include adjusted hot zone sizes, dual hot zones, sample specific fixtures, additional chamber ports, extra thermocouples, residual gas analysers, pyrometers, and different vacuum pumping arrangements. This is important for research facilities and manufacturers that need the furnace to match the process, rather than forcing the process to fit a fixed chamber layout.

Vacuum Pumping Options and Process Control

The vacuum system is a core part of furnace performance. It influences pump down time, base pressure, atmosphere control, cleanliness, and process stability.

Thermic Edge standard laboratory vacuum furnaces can be fitted with vacuum pump systems for rough vacuum operation, with further options available for higher vacuum requirements. For applications requiring lower pressures, options such as oil diffusion pumping can support deeper vacuum levels.

This flexibility matters because different applications place different demands on the chamber environment. Vacuum sintering, annealing, brazing, degassing, wafer processing, and controlled atmosphere processes may each require different pressure levels, cycle settings, or gas handling arrangements.

Common Vacuum Furnace Applications

Vacuum furnaces are used across a wide range of heat treatment and material processing applications. Some of the most common include:

• Vacuum sintering, where powders or compacted materials are bonded through heat.
• Annealing, where internal stress is reduced and material structure is modified.
• Brazing, where components are joined using a filler material in a clean thermal environment.
• Degassing, where trapped or absorbed gases are removed from materials.
• Tempering and hardening, where mechanical properties such as toughness and hardness are adjusted.
• Soldering and metallisation, where controlled surface behaviour and stable heating are required.
• MIM and CIM, where metal or ceramic injection moulded parts require controlled thermal processing.
• Carbonisation and liquid silicon infiltration, where specialist materials require precise atmosphere and temperature control.
• Oxidation furnace processing, where oxygen based thermal conditions are required for oxide growth, surface treatment, thin film development, or semiconductor research.

These applications are found in materials science, semiconductor research, ceramic processing, powder metallurgy, engineering development, and specialist manufacturing.

Choosing the Right Vacuum Furnace

Choosing the right vacuum furnace depends on the material, process, sample size, target temperature, pressure requirement, heating method, gas environment, and throughput. A research laboratory testing small samples will not have the same needs as a semiconductor team processing wafers or a manufacturer carrying out repeated heat treatment cycles.

Before specifying a furnace, it is useful to consider:

• The maximum process temperature required.
• The size and shape of the sample.
• Whether the sample is a crucible load, wafer, component, powder, or specialist material.
• The required vacuum level.
• Whether the process requires inert, reducing, reactive, or oxidising gas conditions.
• Whether oxygen must be prevented, reduced, introduced, or controlled.
• The importance of ramp rate, cooling rate, and temperature uniformity.
• The need for data logging, remote control, or recipe based operation.
• Whether graphite, SiC coated graphite, or another hot zone design is required.
• Whether a standard or custom hot zone is required.

Thermic Edge works with customers to help define these requirements and match the furnace design to the application. This is especially valuable for laboratories and manufacturers working with unusual samples, specialist materials, oxygen sensitive processes, or demanding atmosphere conditions.

Thermic Edge Vacuum Furnace Solutions

Thermic Edge supplies vacuum heating technology for scientific, industrial, and research applications. Its furnace range includes graphite laboratory vacuum furnaces, benchtop furnaces, ALD and annealing systems, and custom furnace options.

The company also manufactures related vacuum heating products, including vacuum heaters, graphite heating elements, silicon carbide heating elements, SiC3 silicon carbide ceramic coatings, power supplies, and vacuum components.

This wider product knowledge allows Thermic Edge to support furnace projects as complete thermal systems, rather than isolated pieces of equipment. For customers working with vacuum, inert gas, reactive gas, or oxidising environments, this can help ensure that the furnace design, hot zone materials, coatings, pumping system, and control features are matched to the real process requirement.

Conclusion

Vacuum furnaces are essential where clean heat treatment, controlled atmosphere processing, high temperature stability, and reliable sample handling matter. From vacuum sintering and annealing to brazing, degassing, wafer processing, oxidation furnace applications, and advanced material research, the right furnace design can improve process quality and repeatability.

Oxidation furnace processing adds another important consideration. When oxygen is part of the process, the furnace must be designed around controlled oxidation rather than simple oxygen removal. This places greater importance on hot zone materials, coatings, gas handling, and application specific engineering.

Thermic Edge designs and manufactures furnace systems for laboratories, universities, research centres, and manufacturers working with demanding vacuum, controlled atmosphere, and thermal processing applications.
