At Thermic Edge, we pride ourselves on being at the forefront of the vacuum heater industry. Providing a complete service, our bespoke versatile ranges give you the tools necessary for any application.
| Element Type | Mass | Air | Inert Environment | Corrosive Environment | High Vacuum | Ultra High Vacuum |
| SiC Coated Graphite | Low | 1400°C | 1200°C | Yes | 1000°C | 800°C |
Thermic Edge have developed a range of standard Silicon Carbide Coating (SiC) coated Graphite elements in order to provide a low cost solution for high temperature heating in O2 and corrosive environments. SiC coating is suitable for use in Oxygen environments up to 1400°C and in High Vacuum up to 1000°C. The Sic coating is fully compatible with Hydrogen and inert gas environments.
The graphite elements are simple to mount, with two M14 threaded sections, allowing for stress relief of the main element. An M5 female threaded hole is provided on each power leg to allow connection to the customers power source, via ring terminals or busbars. The electrical connection is made at the base of the element against exposed graphite, which is kept outside of the hot zone of the element, eliminating the risk of a reaction between the power connection and the exposed graphite.
Thermic Edge are also able to offer customised SiC coated elements to suit existing systems. For more information or to discuss a requirement, please contact our sales team who will be able to assist in identifying a suitable solution.

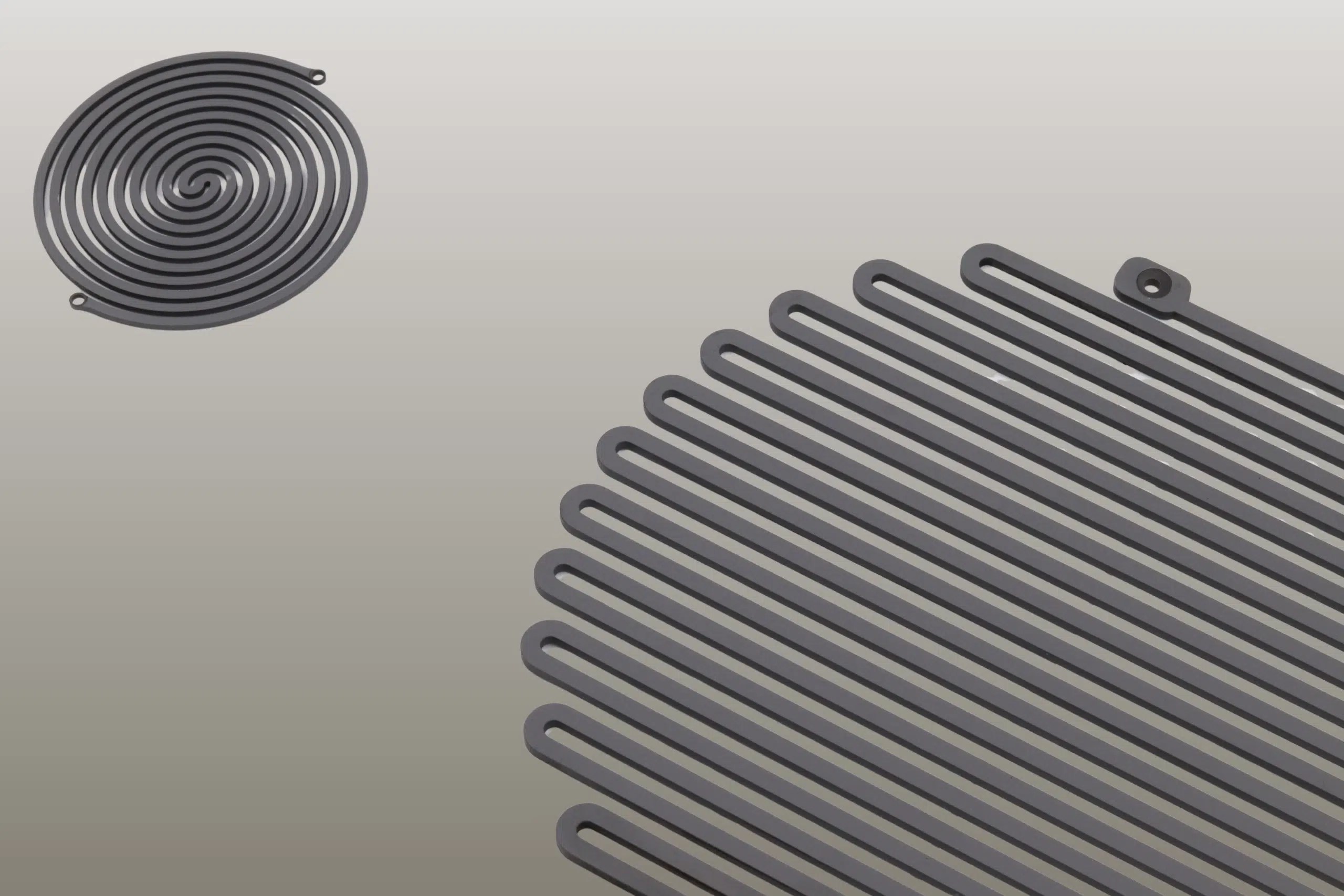

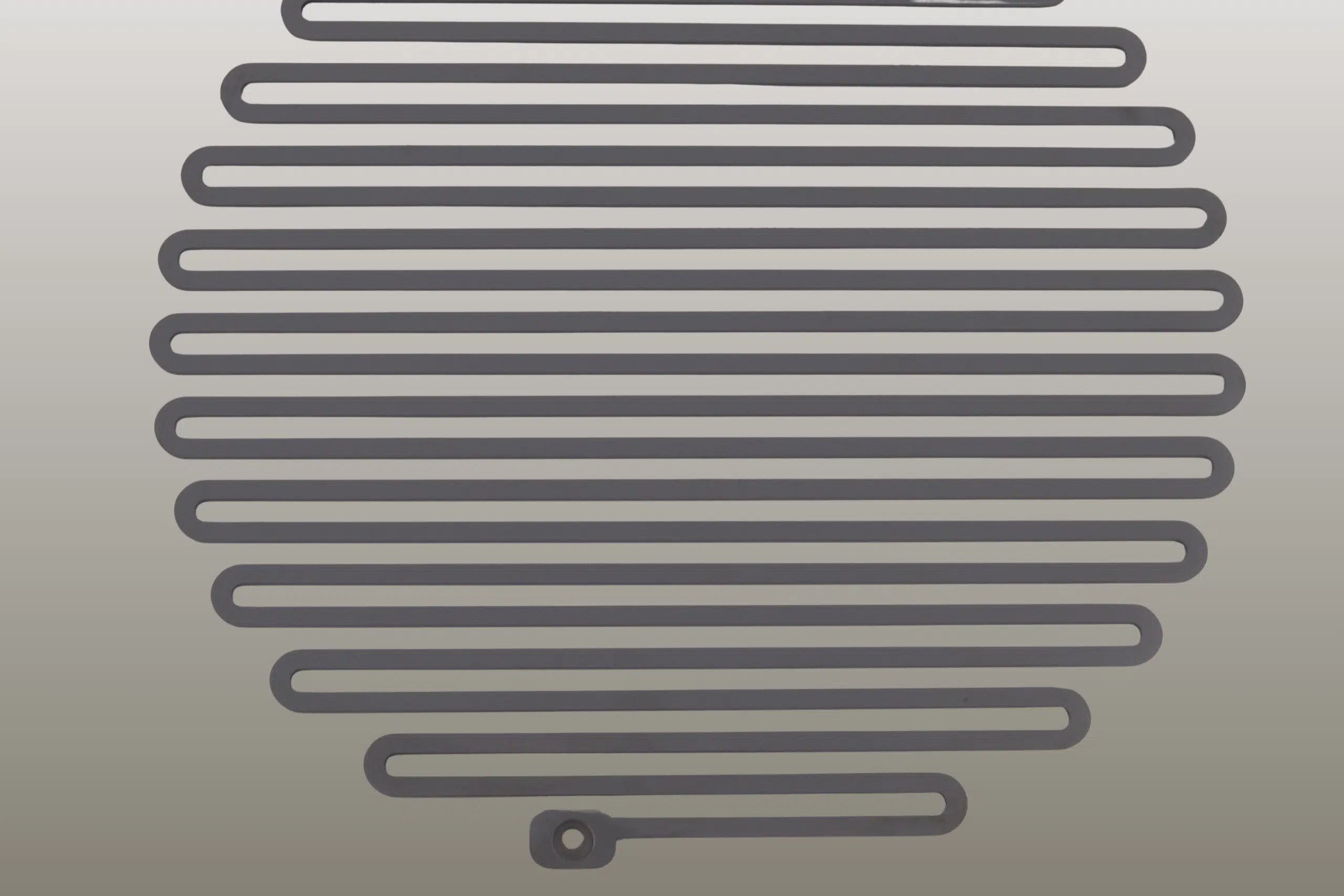

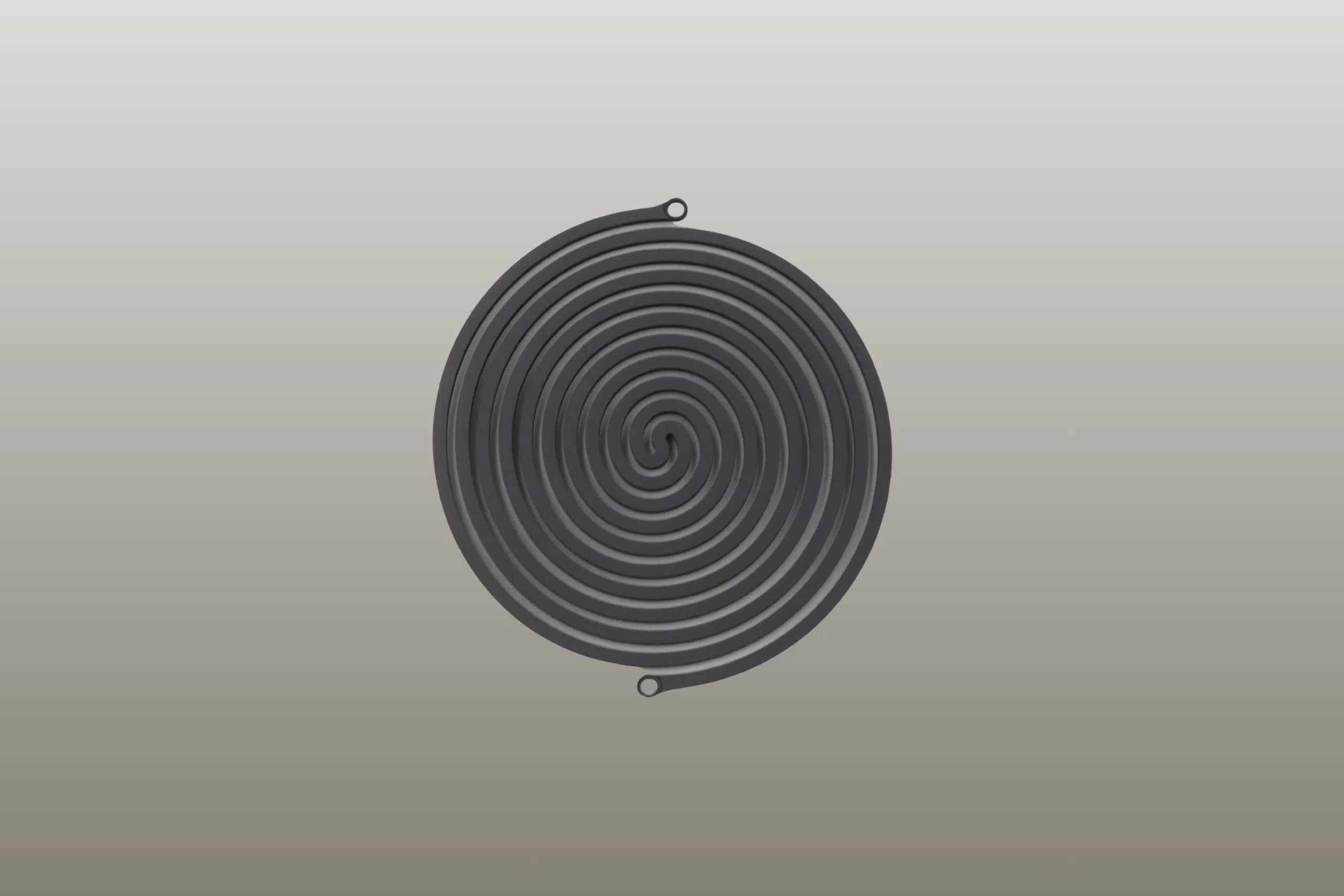

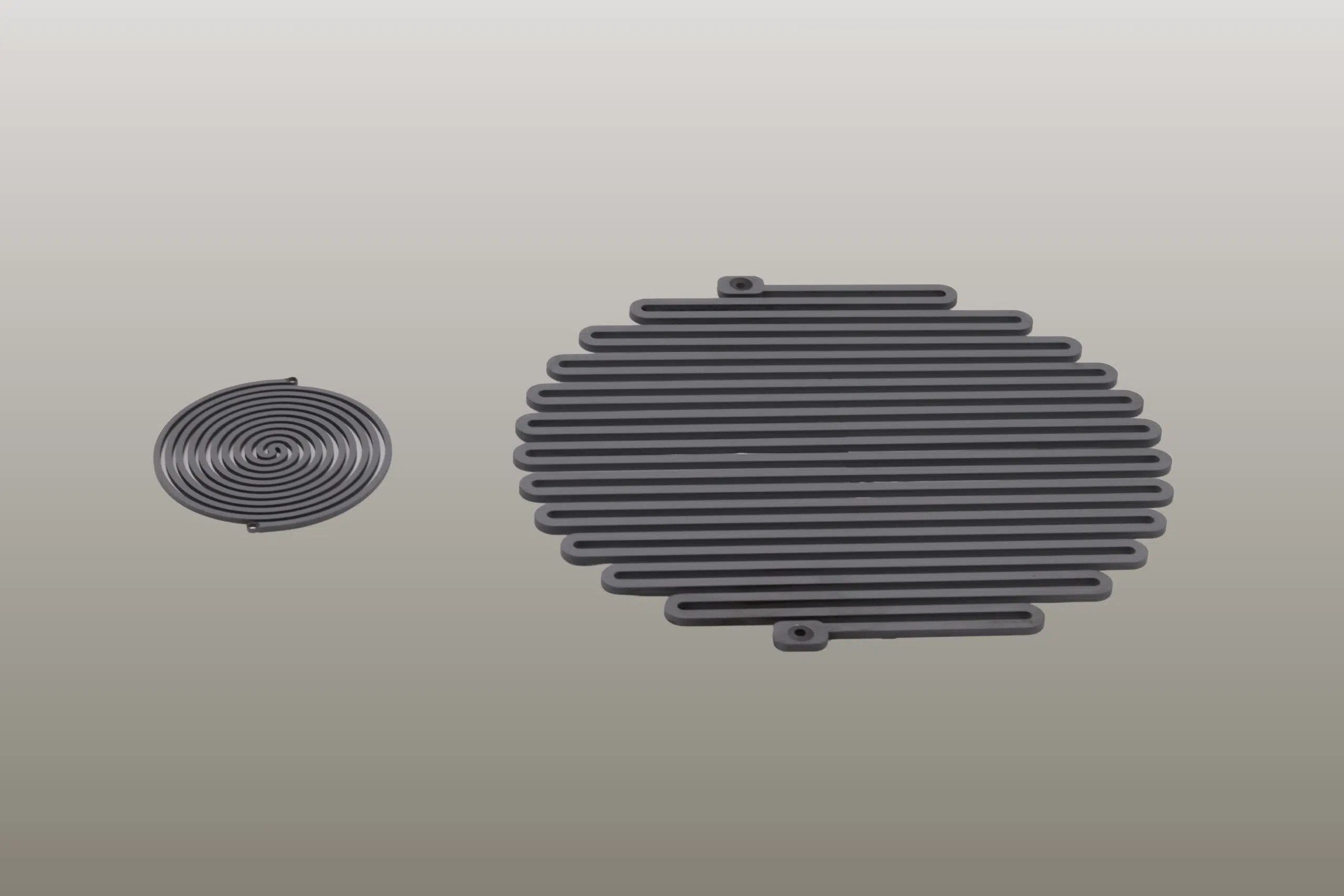

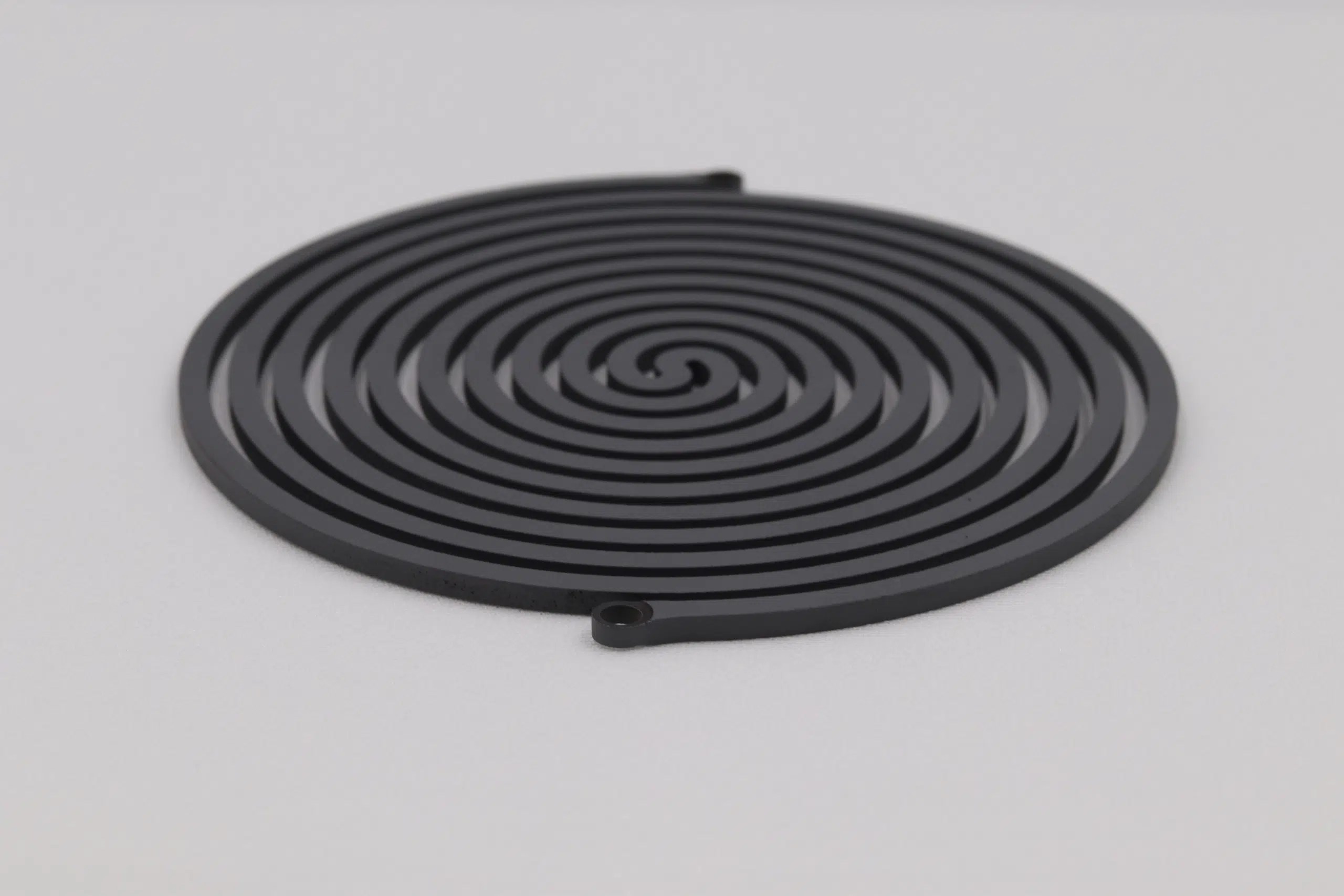

Thermic Edge offers a range of standard PB/PBN heaters along with custom sizes/designs to suit customer specifications.
| Element Ref | Availability | Hot Zone Sizes (mm dia) | Size (mm) | Height (mm) | Connection Point Distance (mm) | Estimated Power for shielded element at 1000°C (Watts) |
| A011-101 | To order | 25.4mm | 30.0 | 37.5 | 27.9 | 200 |
| A011-102 | To order | 50.8mm | 67.0 | 38.3 | 68.4 | 850 |
| A011-103 | To order | 76.2mm | 95.0 | 38.3 | 91.4 | 1700 |
| A011-104 | To order | 101.6mm | 134.4 | 38.5 | 130.7 | 3500 |
| A011-105 | To order | 127.0mm | 150.2 | 38.5 | 146.8 | 4200 |
| A011-106 | To order | 152.4mm | 166.0 | 38.5 | 162.9 | 5100 |
| A011-107 | To order | 177.8mm | 193.0 | 38.5 | 176.2 | 7000 |
| A011-108 | To order | 203.2mm | 220.0 | 38.5 | 1894 | 8800 |
Thermic Edge Limited are committed to lead the industry in delivering innovative, high-quality high-temperature applications, backed by unparalleled customer service.
To be a beacon of innovation and excellence, inspiring positive change and leaving a lasting impact on our industry and the environment
